Clip, specific description of audio and video files. More...

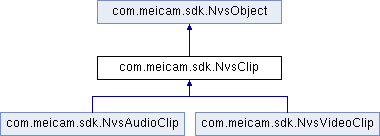

Inheritance diagram for com.meicam.sdk.NvsClip:

Public Member Functions
long	getTrimIn ()
	Gets the trim in point of the clip. More...

long	getTrimOut ()
	Gets the trim out point of the clip. More...

long	getInPoint ()
	Gets the in-point of the clip on the timeline. More...

long	getOutPoint ()
	Gets the out-point of the clip on the timeline. More...

int	getType ()
	Gets the clip type (video clip, audio clip). More...

int	getIndex ()
	Gets the index of the clip on the track. More...

String	getFilePath ()
	Gets the clip file path. More...

int	getFxCount ()
	Gets the number of effects on the clip. Note: The effect index on the clip starts from 0. More...

long	changeTrimInPoint (long newTrimInPoint, boolean affectSibling)
	Modifies the trim in point of the clip. More...

long	changeTrimOutPoint (long newTrimOutPoint, boolean affectSibling)
	Modifies the trim out point of the clip. More...

double	getSpeed ()
	Get the playback speed of the clip. More...

void	changeSpeed (double newSpeed)
	Changes the playback speed of the clip. More...

void	changeSpeed (double newSpeed, boolean keepAudioPitch)
	Changes the playback speed of the clip. More...

void	setVolumeGain (float leftVolumeGain, float rightVolumeGain)
	Sets the volume. More...

NvsVolume	getVolumeGain ()
	Gets volume. More...

Public Member Functions inherited from com.meicam.sdk.NvsObject
void	setAttachment (String key, Object value)
	Adds additional data to the NvsObject object to identify the NvsObject object or for other purpose. More...

Object	getAttachment (String key)
	Gets an attachment to NvsObject. More...

Static Public Attributes
clip type

static final int	CLIP_TYPE_VIDEO = 0
	video clip type More...

static final int	CLIP_TYPE_AUDIO = 1
	audio clip type More...

Additional Inherited Members
Protected Member Functions inherited from com.meicam.sdk.NvsObject
void	setInternalObject (long internalObject)

long	getInternalObject ()

Protected Attributes inherited from com.meicam.sdk.NvsObject
long	m_internalObject = 0

Detailed Description

Clip, specific description of audio and video files.

A clip is an entity that accommodates audio and video content. It is a description of video and audio files, and is divided into an audio clip (Audio Clip) and a video clip (Video Clip). It defines the common attributes and behaviors of different types of clips. That is, the derived audio clips and video clips can be modified for your demand. These modifications include trim in and out points, left or right volume channels, playback speed and so on. In the SDK framework, corresponding audio clips and video clips can be added to the track.

Warning: In the NvsClip class, all public APIs are used in the UI thread! ! !

Member Function Documentation

void com.meicam.sdk.NvsClip.changeSpeed ( double newSpeed )

inline

Changes the playback speed of the clip.

Parameters

newSpeed New playback speed.

Warning: This interface will cause the streaming engine state to jump to the engine stop state, refer to Engine Change Feature for details.

See also: getSpeed

void com.meicam.sdk.NvsClip.changeSpeed	(	double	newSpeed,
		boolean	keepAudioPitch
	)

inline

Changes the playback speed of the clip.

Parameters

newSpeed	New playback speed.
keepAudioPitch	Keep the tone unchanged.

Warning: This interface will cause the streaming engine state to jump to the engine stop state, see Engine Change Feature for details.

See also: getSpeed

Since: 1.15.1

long com.meicam.sdk.NvsClip.changeTrimInPoint	(	long	newTrimInPoint,
		boolean	affectSibling
	)

inline

Modifies the trim in point of the clip.

Parameters

newTrimInPoint	New trim in point (in microseconds).
affectSibling	Whether it affects other clips on the same track (true/false).

Returns: Returns the actual reachable trim in point (in microseconds). Note: The actual achievable trim in point is within [0,trimOut - 1].

Warning: This interface will cause the streaming engine state to jump to the engine stop state, please refer to Engine Change Feature for details.

See also: changeTrimOutPoint; getTrimIn

long com.meicam.sdk.NvsClip.changeTrimOutPoint	(	long	newTrimOutPoint,
		boolean	affectSibling
	)

inline

Modifies the trim out point of the clip.

Parameters

newTrimOutPoint	New trim out point (in microseconds).
affectSibling	Whether it affects other clips on the same track (true/false).

Returns: Returns the actual reachable trim out point (in microseconds). Note: The actual achievable trim out point is within [trimIn + 1, clipDuration] and clipDuration is the clip duration.

Warning: This interface will cause the streaming engine state to jump to the engine stop state, refer to Engine Change Feature for details.

See also: changeTrimInPoint; getTrimOut

String com.meicam.sdk.NvsClip.getFilePath ( )

inline

Gets the clip file path.

Returns: Returns the string of the clip path.

int com.meicam.sdk.NvsClip.getFxCount ( )

inline

Gets the number of effects on the clip. Note: The effect index on the clip starts from 0.

Returns: Returns the number of special effects on the clip.

int com.meicam.sdk.NvsClip.getIndex ( )

inline

Gets the index of the clip on the track.

Returns: Returns the index value of the clip on the track.

long com.meicam.sdk.NvsClip.getInPoint ( )

inline

Gets the in-point of the clip on the timeline.

Returns: Returns the in-point value of the clip on the timeline (in microseconds).

See also: getOutPoint; getTrimIn

long com.meicam.sdk.NvsClip.getOutPoint ( )

inline

Gets the out-point of the clip on the timeline.

Returns: Returns the out-point value (in microseconds) of the clip on the timeline.

See also: getInPoint; getTrimOut

double com.meicam.sdk.NvsClip.getSpeed ( )

inline

Get the playback speed of the clip.

The default value is 1, which means that it plays at normal speed; the value less than 1 means slower playback; the value greater than 1 means faster playback.

Returns: Returns the playback speed of the current clip.

See also: changeSpeed

long com.meicam.sdk.NvsClip.getTrimIn ( )

inline

Gets the trim in point of the clip.

Returns: Returns the trim in point of the clip (in microseconds).

See also: getTrimOut; changeTrimInPoint; getInPoint

long com.meicam.sdk.NvsClip.getTrimOut ( )

inline

Gets the trim out point of the clip.

Returns: Returns the trim out point of the clip (in microseconds).

See also: getTrimIn; changeTrimOutPoint; getOutPoint

int com.meicam.sdk.NvsClip.getType ( )

inline

Gets the clip type (video clip, audio clip).

Returns: Returns the clip type value. The return value is a static int value prefixed by CLIP_TYPE. Two types of clips are included, namely the audio clip type and the video clip type. Please refer to fragment type.

NvsVolume com.meicam.sdk.NvsClip.getVolumeGain ( )

inline

Gets volume.

Returns: Returns the volume object obtained.

See also: getVolumeGain

void com.meicam.sdk.NvsClip.setVolumeGain	(	float	leftVolumeGain,
		float	rightVolumeGain
	)

inline

Sets the volume.

Parameters

leftVolumeGain	Left channel value, value range [0, 8).
rightVolumeGain	Right channel value, value range [0, 8).

See also: getVolumeGain

Member Data Documentation

final int com.meicam.sdk.NvsClip.CLIP_TYPE_AUDIO = 1

static

audio clip type

final int com.meicam.sdk.NvsClip.CLIP_TYPE_VIDEO = 0

static

video clip type

The documentation for this class was generated from the following file:

src/android/jar/com/meicam/sdk/NvsClip.java
